Thursday, April 26, 2012

Apple TV case

Playing around with a CNC router yesterday I built this:





Sunday, March 25, 2012

a new (free) party game like "the telephone game" and "draw something"

A friend just told me about a party game that's a little bit like Chinese whispers (the Telephone Game) combined with Draw Something.
  1. Each person gets a pencil and as many pieces of paper as there are people around the circle. As a group, pick a theme, such as "song titles" or "household things".
  2. On their first piece of paper everyone writes the name of one "thing" and then passes it to their right.
  3. On a new piece of paper they draw the "thing" that they were just handed, and pass that to the right.
  4. They guess the name of the "thing" depicted in the drawing they were just handed.
  5. Play continues until you have your first "thing" back. Talk about how different it is.
As an example, let's say Allen writes the word "Apple" and passes it to Ben. At the same time, Zack writes the word "Zebra" and passes it to Allen. Ben attempts to (silently) draw an apple and pass the drawing to Chad, while Allen tries to draw a zebra. After going all the way around the circle, Allen might be handed a drawing of a watermelon and Zach might get a drawing of a dog.

accessibility switch-enabled Wii controller

Full write-up coming soon, but here are some photos. I estimate that I spent about $45 on the project.





Monday, March 12, 2012

using Inkscape and Gcodetools for CNC plasma cutting

I like SheetCam for generating G-code for a CNC plasma cutter from DXF or SVG drawings, but I prefer free and/or open source programs that students can use on their own computers. Inkscape and the Gcodetools plug-in achieve that.

Version 0.49 of Inkscape will include Gcodetools, but until then we have to extract the contents of the Gcodetools download (using a program such as 7-zip) and put them in the appropriate Inkscape directory (probably c:\Program Files\Inkscape\share\extensions\ on Windows).

Once you have this set up, start up Inkscape and check under the Extensions menu for Gcodetools.
If it's not there, close Inkscape, make sure the files are copied to the correct directory, and restart Inkscape.

The process for creating G-code from a drawing follows:

Open (or create) a drawing in Inkscape. Make sure the bottom left corner of your drawing is at the bottom left of the document. As an example, I'll be making an arcade controller top for mounting buttons and a joystick.

Convert all objects to paths. Keyboard shortcuts to do this are <Ctrl><a> (to select everything) then <Shift><Ctrl><c> to convert objects to paths.

You should now have only "objects of type Path".

Now we need to set some orientation points. Click on the Extensions menu and select Gcodetools then Orientation points....

Change the Units to inches (in) and click Apply then Close.

To specify that you're going to use a plasma cutter, click on the Extensions menu and select Gcodetools then Tools library...

Select plasma and click Apply.

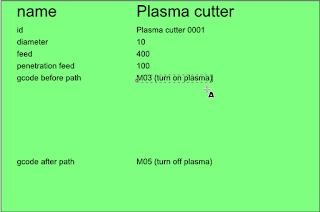

This will create a green text box with your tool definition in it.

You will be able to edit the text to edit it and change things like your feed rate. For now all we want to do is remove some of the "gcode before path" lines. Double-click that text box and delete everything but the line "M03 (turn on plasma)" so that it looks like this:

Next you will need to select all of your objects again (press F1 to use the arrow tool again instead of the text tool) and choose Prepare path for plasma...

This will bring up a window allowing you to create lead-in and lead-out paths, as explained in this article on torchmate.com. You'll probably want a short in-out path to make a cleaner cut and to show you which direction the torch will be cutting. Remember that the units for the length are inches. Click Apply create the paths and click Close to close that tool once it has finished.

If you don't like how the in-out paths look, you can undo it and try again until you get something that looks like this:

You can now select and delete the objects in your original drawing so you will just see the cut paths.

Now select Path to Gcode....

Click on the Preferences tab to make sure you will be saving the file onto your flash drive (e.g. drive e:\).

Select the Path to Gcode tab and click Apply. Read through any warnings that pop up, but you should get some usable G-code.

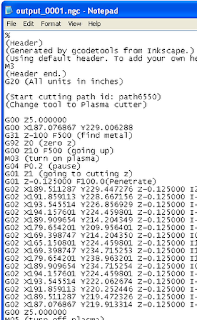

Open the file in Notepad or a similar text editor, and it should look like this:

The one thing you'll want to change is to delete the M3 on the fourth line of the file. M3 is the Gcode for turning on the torch, and we don't want it to turn on until the torch has moved into position. You can eliminate this step by having an empty file in your output directory (e:\ or wherever you specified earlier) that is called header.txt (edit: the empty file should just be named header with no extension).Your output file will then look like this:

Open that output.ngc file in Mach3, make sure everything looks as you expect, set up the torch (talk to your Instructor about the torch settings), and click Cycle Start (or press <Alt><r>). You may need to click (or press) this again every time the torch fires if it's set to pause before cutting.

Hopefully everything will work for you and you'll have a nicely cut metal project.


Monday, March 5, 2012

mapping box.com as a network drive

To make better use of my 50 GB of free online storage at Box.com, I've just learned that you can map it a network drive.

Windows Instructions:
Right-click on "My Computer" (or "Computer") and choose "Map Network Drive...".
In the "Folder" box type   http://www.box.net/dav/
Click on "Connect using a different user name." and input your Box.com username and password.
Click the "Finish" button and in a minute or two you should have a new network drive on your computer that is your Box.com files and folders.
